A nominal size such as “400 mm bellows” does not tell you the usable stroke, compressed length, mounting fit or service limits of a CNC machine bellow cover. By the end, you will be able to measure the machine envelope, write a complete specification and compare quotations from Pune manufacturers on equivalent terms.
Key takeaways
- Measure travel, open length, compressed length and installed height in millimetres.
- Record axis direction, machine datum, mounting faces and moving-part clearances.
- Specify coolant, chip size, heat exposure and fabric construction before comparing quotes.
- Request drawings, tolerance limits and inspection details from every Pune supplier.

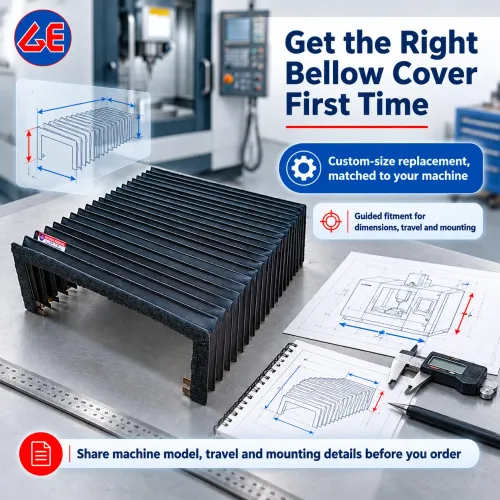

Define the dimensions that determine a usable CNC bellow cover
A usable CNC machine bellow cover specification must define the cover’s travel, envelope and compressed package in millimetres—not merely state “400 mm bellows.” Include whether each dimension is measured unloaded or installed, and identify the machine datum and axis direction.
- Protected length and usable axis stroke, from the fixed datum to the moving carriage’s maximum position.
- Fully extended length and compressed length. Two covers with the same stroke can need different retracted spaces because fold pitch, folded height, end frames and internal guides differ.
- Outside width and height, plus folded height, fold pitch, number of folds and wall thickness.
- Minimum and maximum allowable travel, including any overtravel that could stretch or buckle the cover.
- Mounting-frame length, width and thickness at both ends, with flange shape and hole-centre dimensions.
- Guideway clearance, support-rail position and the free space around the moving carriage.
- Maximum speed and acceleration, because a cover that fits statically can pull on its frame during rapid movement.
- Operating temperature, chip temperature and required service life alongside the dimensional data.
These fields form dependable CNC bellow cover specifications and make CNC machine bellow cover sizes comparable between suppliers. Request a GA drawing showing the extended and compressed states, mounting datums and inspection dimensions before approving a quotation; otherwise two apparently identical covers can deliver different usable strokes.
Measure the CNC axis before requesting a quotation
Measure the axis in millimetres from the machine’s fixed datum, not from an existing bellows. Record both the physical travel and the space available at each end; otherwise the cover may reach full extension but prevent retraction.
1. Identify the stationary datum and axis direction. Mark the moving carriage’s nearest and farthest positions, then measure the stroke between those two positions. State whether each dimension is measured unloaded, installed, or at a defined machine position.
2. At the retracted position, measure the minimum space available for the compressed cover. Include the distance between mounting faces, the guideway height, nearby brackets, lubrication lines, and the moving carriage envelope. This determines the allowable compressed length.
3. At full extension, measure the protected guideway length from the stationary mounting face to the farthest moving-member position. Add no extra length unless the cover design requires overlap beyond the contamination zone.
4. Measure outside width and height, fold-packet clearance, and the proposed mounting-frame envelope. Check clearance through the complete stroke, including rapid reversals; a cover that clears at both endpoints can still collide midway.
5. Mark flange locations, bolt-hole spacing, and the moving or stationary attachment on a dimensioned sketch. Request CNC machine bellow cover sizes showing extended length, compressed length, folded height, usable travel, and fold pitch, plus a GA drawing for approval.
Give the supplier axis speed, acceleration, orientation, coolant exposure, chip condition, and operating temperature with these measurements. Those loads affect fold behaviour and service life, so travel alone cannot qualify the cover.
Specify mounting, guidance and clearance—not just the bellows envelope
The approval drawing must show how the cover attaches, moves and stays clear—not only its extended envelope. CNC bellow cover specifications are incomplete without the machine datum, axis direction, fixed or moving attachment, guidance method and dimensional tolerances.
- Identify the stationary and moving members, mounting direction, flange or frame material, plate thickness, hole pattern, bolt spacing, thread sizes and fastener-access direction.
- Show the machine datum, axis centreline and mounting-face tolerances, including parallelism between opposing faces.
- Specify the sealing method: clamped flange, gasket, overlap, stitched edge or another defined joint.
- Show guide rails, support strips, rollers or internal guides, plus the load each arrangement must avoid transferring to the guideway.
- Mark the axis stroke, fully extended and compressed lengths, maximum speed, maximum acceleration and direction of travel.
- Dimension clearances at full extension and compression around the guideway, ballscrew, lubrication lines, sensors, cable carriers and nearby guards.
- State whether dimensions are measured unloaded or installed, and give the minimum fold-to-fold clearance and allowable interference.
| Drawing item | Entry to compare | Failure if omitted |
|---|---|---|
| Mounting interface | Flange shape, hole coordinates, datum and fastener access | Misalignment, leaks or an attachment that cannot be installed |
| Guidance | Support arrangement and moving-member connection | Buckling or guideway loading |
| Movement envelope | Extended length, compressed length and travel limits | Lost stroke or crushed folds |
| Clearance | Toleranced gaps at both travel ends | Contact with chips, sensors or machine components |
Match fabric and construction to coolant, chips and heat
Choose the bellows construction from chip energy, coolant exposure and temperature—not from width and travel alone. Coated fabric suits general flood coolant, lubricant mist and light-to-moderate chips, while heat-resistant textile or foil-faced material suits hotter chips that would scorch or soften standard coatings.
Match the protection level to the machining condition:
- General milling and turning: use coated fabric with sealed folds and reinforced end frames for coolant, swarf and routine abrasion.
- Sharp or heavy chips: specify reinforced fold edges, abrasion-resistant layers and a mechanically assembled or welded design that resists puncture and impact.
- Hot chips: use heat-resistant textile or foil-faced construction, then state the chip temperature and exposure duration; foil does not compensate for excessive impact.
- Fine dust or abrasive particles: require tighter fold sealing and a compatible surface coating, because particles entering the folds accelerate wear.
State coolant type, lubricant, chip material, chip temperature, operating temperature, axis speed, acceleration and required service life in the cnc bellow cover specifications. Ask for the material stack-up, joining method—sewn, welded or mechanically assembled—and any internal guides.
Keep the cover separate from machine guarding. ISO 12100 risk assessment helps identify whether the cover controls chips, coolant, dust or hot particles; access, entanglement and operator protection need separate guarding measures. Also confirm compressed length, because fold pitch, height and end-frame construction change the clearance required at full compression.
Turn the specification into a comparable Pune supplier RFQ
Request a millimetre-based, drawing-backed quotation before comparing prices. A nominal “400 mm bellow” does not identify usable travel, compressed length, or mounting compatibility.
- Send the supplier the machine datum, axis direction, stroke, maximum extension, minimum compression space, and whether each dimension is measured unloaded or installed.
- Require a GA drawing showing extended and compressed lengths, folded height, outside width and height, fold pitch, number of folds, wall thickness, mounting-frame dimensions, flange shape, hole pattern, bolt spacing, fastener access, and clearances.
- State the operating envelope: maximum speed, acceleration, orientation, coolant and lubricant types, chip material and temperature, operating temperature, dust or hot-particle exposure, and required service life.
- Require material and construction details, guide or support arrangement, sealing method, frame-plate material, and whether the cover attaches to the moving or stationary member.
- Define the life test: stroke, speed, acceleration, cycle count, orientation, coolant exposure, and chip loading. Reject “long life” without those conditions.
- Ask the CNC machine protection cover supplier in Pune to identify which hazards the cover controls and which remain machine-guarding risks under ISO 12100.
Use the same checklist for every quotation, including one from GURUKRUPA BELLOWS PVT LTD. That creates comparable cnc machine bellow covers specifications for manufacturers in Pune instead of comparing different designs under one price.
Related products

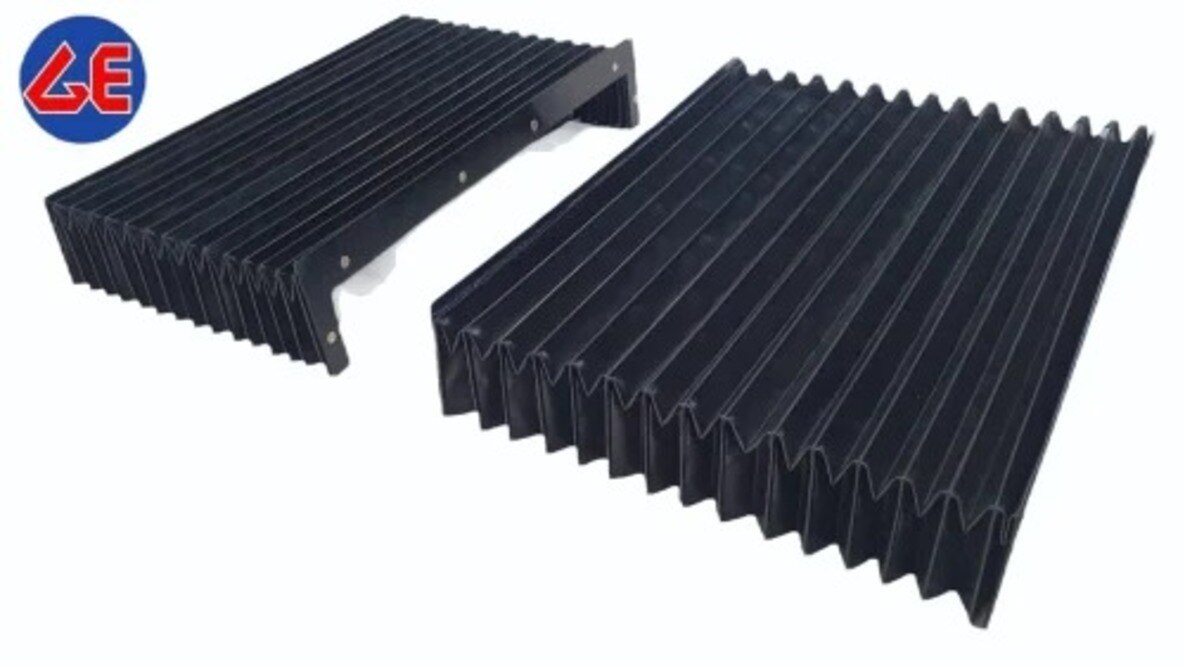

 | CNC Bellow Cover Product Details: Brand GURUKRUPA Color BLACK Size ANY We are considered a well-known name in the business that manufactures and supplies CNC Bellow... View product → |
 | Bellow Cover ₹1000 Product Details: Brand GE Color Black-Blue - Gray -White Size ANY ( C shape, Square, Round, Rectangular) Ours is a trustworthy name in the business... View product → |
Frequently asked questions
Which dimensions define a usable CNC bellow cover?
Specify the required travel, open length, compressed length, width, height, folded thickness and installed envelope. State whether each measurement is unloaded or installed.
How should you measure a CNC axis before requesting a quotation?
Identify the machine datum and axis direction, then measure the full travel, available mounting faces, retracted package space and clearances at both ends of travel.
What details belong in a CNC bellow cover specification besides size?
Include mounting method, guide arrangement, fixed and moving ends, support requirements, folded clearance, adjacent component clearance and access for maintenance.
How do coolant, chips and heat affect CNC bellow cover selection?
Describe the coolant type, chip size and shape, impact level, operating temperature and fire exposure. Match those conditions to the fabric, coating, reinforcements, seams and construction.
What should a Pune supplier RFQ contain for comparable quotations?
Send a dimensioned drawing, axis travel data, mounting and clearance requirements, operating conditions, inspection criteria, delivery expectations and the exact documents required with the quotation.
