A scissor lift bellow cover can look intact at rest yet tear when folds compress, extend, or pass through changing gaps between the arms. By tracing the damage to a lift position, measuring the complete motion envelope, and correcting the mounting or exposure problem, you can identify the cause before installing another failed cover.
Key takeaways
- Keep platform loads and end-of-travel impacts off the bellow.
- Inspect folds, attachment frames, and clearances while the lift cycles.
- Measure travel, compressed height, width, and mounting points before replacement.
- Match the cover material to chips, coolant, heat, and cleaning chemicals.
How movement creates scissor lift bellow failure
A scissor lift bellow is a guarding component, not a structural member. The platform, guide system, and mechanical end stops must carry the load and absorb end-of-travel forces; if the cover supports platform weight or takes the impact, its fabric and attachment frames can tear.
Movement creates scissor lift bellow failure when the cover reaches its compressed-stack limit before the lift reaches its mechanical end position. Further travel crushes pleats, loads seams, and can cause over-compression. Excessive extension, high acceleration or jerk, side loading, unequal tension, lateral sag, and diagonal folding pull one edge beyond its limit.
Rigid end frames and mounting strips create hard transitions that concentrate force.
Scissor mechanisms also create changing intermediate pinch points. A cover clear at the top and bottom positions can strike these moving parts during travel:
- Scissor arms, rollers, hinges, guides, the cylinder, and the frame
- Trapped swarf that creates a straight cutting edge
- A folded section forced to bend in the wrong direction
Look for these forms of scissor lift bellow cover damage:
- Torn folds, crushed pleats, punctured fabric, or straight abrasion cuts
- Split stitching, detached flanges, edge pull-out, or loose mounting strips
- Cracked coating or heat burns
Repeated damage at one fold indicates compression or a fixed pinch point. Edge pull-out indicates attachment load or unequal tension; widespread coating cracks point to chemical, thermal, or flex-fatigue damage.
How to inspect the cover while the lift is moving
The first damaging position appears during travel, not necessarily at full raise or full collapse. Follow the machine’s lockout, isolation, and guarding procedures; never place hands, tools, or cameras inside a moving scissor mechanism.
1. After the authorized safety release, run controlled cycles at low speed from one end position to the other. Use fixed observation points outside the hazard zone and stop at the first sign of rubbing, buckling, stretching, or pinch contact.
2. Inspect each fold valley, the underside, attachment edges, cylinder-to-barrel connection points, scissor-arm gaps, rollers, hinges, guides, and frame corners. A gap that looks clear when raised or lowered can close around an intermediate height.
3. Record the lift height, travel direction, speed, and exact first position where contact appears. Photograph the cover and the nearby mechanism before moving it again.
4. Match the pattern to the cause. Long straight cuts indicate rubbing or trapped swarf; repeated damage at the same folds indicates compression or a fixed pinch point. Edge pull-out indicates attachment load or unequal tension.
5. Check oil traces separately from fabric damage. Oil near the cylinder suggests a leak, while a bent arm changes arm geometry, a faulty guide interrupts smooth guide movement, and a loose fastener leaves visible movement or a shifted attachment edge.
Compare platform level and frame alignment; an uneven platform points to lift-table misalignment, not necessarily scissor lift bellow failure.
Scissor lift bellow cover damage located beside one arm, roller, hinge, or guide identifies the moving contact that a static inspection misses.
What to measure before replacing a damaged bellow
Measure the entire motion envelope, not just the lift’s raised and lowered heights. Record these values before specifying a replacement:
| Measurement | Record | Why it matters |
|---|---|---|
| Collapsed height | Minimum stack and folded height per pleat | Confirms the stack stays above the cover’s compressed limit at end position |
| Extended height and total stroke | Maximum height, start height, and travel distance | Prevents excessive extension and seam loading |
| Intermediate geometry | Lateral clearance, tilt, offset, and complete clearance around scissor arms | Finds pinch points that appear only while arms cross |
| Mounting geometry | Each mounting-face length, width, hole spacing, height, and flange orientation | Prevents unequal mounting and twisted fabric |
| Motion profile | Travel direction, maximum operating speed, acceleration, and deceleration | Matches the cover to jerk, impact, and repeated cycling |
Open and closed heights alone miss a roller, hinge, guide, cylinder, or arm that contacts the folds mid-travel. Photograph and measure the first contact position, not only the fully raised lift.
Check that the lift platform, guides, and mechanical end stops carry weight and absorb end-stop impact. The fabric must not support the platform or act as a stop. Specify the anti-sag or lateral-guidance arrangement so a wide cover cannot fall into the arms.
During installation, keep both mounting faces level, use specified spacers, avoid over-tightened fasteners, and confirm the flange direction. Leave clearance through the complete travel, and attach the cover only to an engineered mounting point.
These checks prevent repeat scissor lift bellow cover damage and make a specification for scissor lift bellow covers in Pune usable rather than guesswork.
How chips, coolant, heat, and cleaning change failure speed
Failure speed is set by contamination and temperature as much as by lift motion. Chips and swarf packed into accordion folds create three-body abrasion: debris cuts the coating and fabric against the cover at every cycle.
1. Inspect the fold valleys and underside, not just the exposed surface. Remove trapped swarf before deciding that brushing has cleaned the cover.
Look for long straight cuts from rubbing or debris, repeated fold tears from compression or a fixed pinch point, edge pull-out from unequal tension, and widespread coating cracks from chemical or thermal attack.
2. Check the actual coolant concentration and cleaning procedure against the cover materials. Cutting fluid and tramp oil can attack coatings or thread; alkaline cleaners and washdown chemicals can damage adhesives, hook-and-loop fasteners, and inspection panels. Record ultraviolet exposure, hot-chip contact, surface and fold temperatures, radiant heat, trapped hot air, and thermal cycling.
Discoloration is not a safe failure threshold.
3. Set inspection frequency from cycles per shift and contamination severity, not a universal interval. Shorten the interval as abrasive debris, washdown, hot-chip exposure, chemical contact, or dust ingress rises. For scissor lift bellow covers for problems in Pune, record monsoon humidity, dust, coolant type, washdown frequency, hot-chip exposure, and cycles per shift.
4. Replace the cover when reinforcement is exposed, a seam opens, attachment hardware detaches, or coverage is lost over the cylinder rod and barrel connection points. Treat any scissor lift bellow cover damage at those locations as a guarding failure, not cosmetic wear.
How to prevent a replacement from failing again
Do not order a replacement until you know whether the cover failed or the lift forced it to fail. A scissor lift bellow failure that begins at one intermediate height points to clearance, alignment, or motion; uniform cracking across folds points more strongly to contamination, temperature, reinforcement, or coating.
Treat the cover as guarding, never as a load-bearing or end-stop component.
1. Record the first contact position and damage pattern. Measure clearances at intermediate heights, the compressed stack, extension limit, lateral guidance, mounting-frame alignment, and fastener spacing. Photograph fold valleys, attachment edges, and both sides—not only the fully raised lift.
2. Correct the mechanical cause before specifying fabric. Repair a faulty guide, replace a loose fastener, realign a tilted table, or add a spacer or guard where an arm, roller, cylinder, hinge, or frame contacts the cover.
If the cover reaches its compressed limit early, increase usable stack space; if it snaps at travel end, reduce end-stop impact and acceleration or jerk.
3. Check contamination, surface temperature, fold temperature, and acceleration profile against the failure location. Specify different reinforcement or coating when coolant, hot chips, abrasive dust, or washdown caused the damage; fitting thicker fabric alone will not fix a trapped fold or unequal tension.
4. Cycle the repaired lift slowly, then at operating speed, through its full travel. Confirm free movement, stable lateral guidance, correct folds, and no contact at either end. For scissor lift bellow covers in Pune, suppliers such as GURUKRUPA BELLOWS PVT LTD can use these measurements and failure photographs rather than guesswork.
That is also the sensible method for scissor lift bellow covers for problems in Pune.
Related products

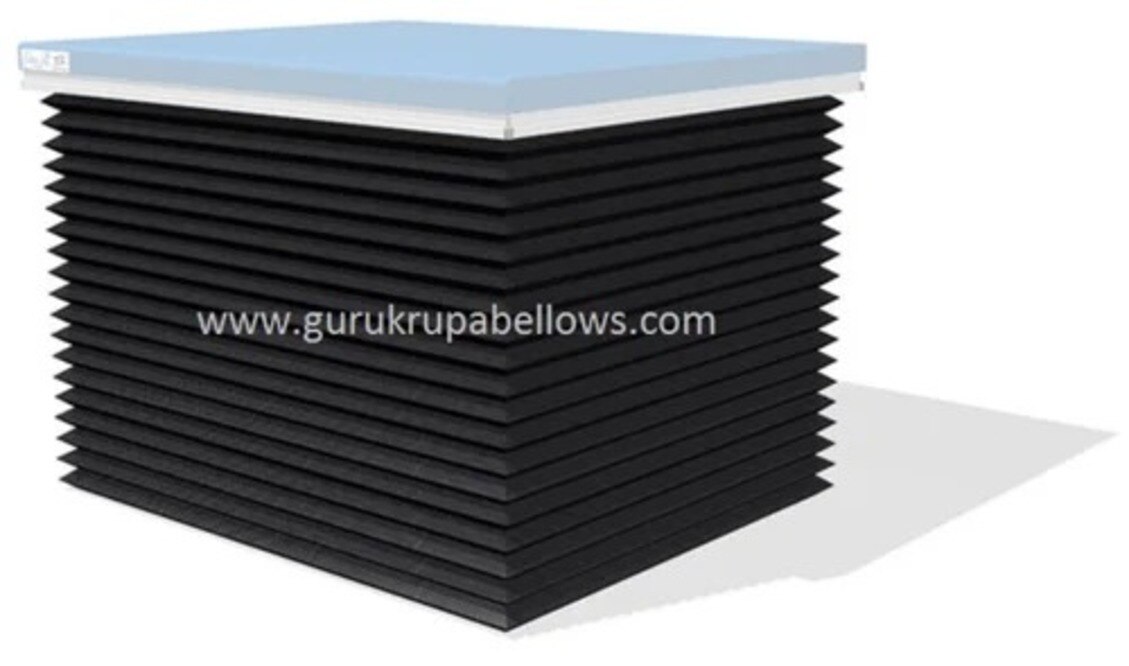

 | Bellow Cover ₹5000 Product Details: Brand GURUKRUPA Color Black-Blue Size Customised With the support of our excellent team workers, we have been delivering the best... View product → |
 | Product Details: Brand GURUKRUPA Color Black-Blue Size Customised With support of our excellent team workers, we have been delivering the best... View product → |
Frequently asked questions
How does machine movement cause scissor lift bellow failure?
Failure occurs when the bellow carries platform weight, absorbs end-of-travel impact, folds against obstructions, or operates with incorrect travel and compression limits.
How can you inspect a scissor lift bellow while the lift is moving?
Run the lift through its full safe stroke and watch for rubbing, pinching, uneven folding, frame movement, stretched seams, and contact with guideways or end stops.
What should you measure before replacing a damaged bellow?
Record the extended and compressed lengths, width, fold height, mounting-hole pattern, attachment-frame dimensions, travel, clearances, and end-stop positions.
How do chips, coolant, heat, and cleaning affect bellow damage?
Abrasive chips cut folds, coolant attacks unsuitable fabrics or coatings, heat hardens materials, and aggressive cleaning can weaken seams, adhesives, and protective layers.
