A cover labelled for a Trumpf laser is not automatically the right replacement for your machine. By checking the exact model, axis geometry, operating hazards, installation fit, and inspection needs, you can decide whether a proposed cover will protect production without creating a new source of downtime.
Key takeaways
- Treat the Trumpf label as a starting point, not proof of compatibility.
- Measure the compressed length, extended length, folds, mounting holes and travel.
- Match the bellows material to heat, sparks, fumes, coolant and abrasive dust.
- Test smooth movement and clearance before returning the laser cutter to service.
Is a Trumpf label enough to confirm fit?
A TRUMPF label does not confirm fit. Treat “Trumpf laser bellows” as either an original part claim or an aftermarket compatibility claim until the supplier identifies the exact machine model, serial number, laser type, protected axis, and supplier drawing.
| Option | What it means | Evidence to request |
|---|---|---|
| Original part | Made by TRUMPF for a specified machine and axis | Original part number, machine-model match, and traceable documentation |
| Direct replacement | Intended to replace one identified original component | The original part number it replaces, plus matching end-frame and mounting dimensions |
| Aftermarket compatible | Designed to match a stated TRUMPF application | Model, serial number, axis, drawing, travel, folded height, and attachment details |
| Custom-made component | Manufactured from measurements rather than a catalogue part | Signed measurement drawing and confirmation of materials and mounting method |
Do not treat Trumpf laser bellow covers as interchangeable between an L4050 MC and a TruLaser 3030. Similar-looking covers can have different end frames, hole patterns, folded heights, compressed lengths, and attachment methods. Ask whether the supplier used new measurements or is replacing a specific original part number.
A cover that fits one axis can restrict another, foul a cable carrier or adjacent guard, or transfer movement loads into thin sheet metal not designed to carry them. Confirm both maximum extension and minimum compressed package length before ordering; correct stroke length alone proves nothing.
What must you measure before ordering?
Measure the installed machine, not the TRUMPF badge. A model name alone cannot define a replacement because two axes can use different frames, hole patterns, compressed lengths, and attachment methods.
| Measurement | Record | Why |
|---|---|---|
| Fixed and moving ends | Frame width and height, flange-hole pattern, hole diameter, bolt spacing, end-plate shape | Matches the mounting geometry |
| Motion envelope | Axis travel, maximum extension, folded height, minimum compressed package length | Prevents fouling at either end |
| Installation position | Horizontal, vertical, or angled mounting; fold-compression direction | Confirms how the cover must move |
| Clearances | Axis, sheet-metal guard, nozzle assembly, cable carrier, hoses, sensors, and moving tooling | Stops rubbing, crushing, and transferred loads |
Photograph both ends with a ruler or other scale visible, and mark the fixed end on each image. Measure clearance at the fully extended and fully compressed travel limits; a cover with the correct extension can still be too long when folded.
Attach this information to the enquiry for laser cutting bellow covers:
- Cutting material, laser type and wavelength, assist gases, operating temperature, and continuous-motion frequency
- Coolant or oil exposure, abrasive dust, humidity, and cleaning chemicals
- Machine serial number, protected axis, installation orientation, and inspection interval
Ask for a supplier drawing showing every dimension before approval. This measurement sheet gives a supplier enough evidence to quote a machine-specific cover rather than a generic visual substitute.
Can the material withstand your cutting environment?
A suitable cover must match the hazards reaching the protected axis, not merely the machine brand. Sparks, molten-metal spatter, hot swarf, smoke condensate, coolant, lubricant, cutting gases, abrasive dust, and repeated folding each require separate evidence.
| Hazard | Evidence to request | What the claim proves |
|---|---|---|
| Heat | Temperature range and exposure duration | Performance at stated heat over stated time |
| Flame | Flame-retardancy test method and result | Ignition or flame-spread behaviour |
| Laser radiation | Evaluated wavelength and exposure conditions | Resistance to specified laser exposure |
| Molten metal | Hot-particle impact or spatter test | Resistance to striking molten particles |
Fiber lasers commonly operate around 1.03–1.08 µm; CO₂ systems operate near 10.6 µm. Ask which wavelength the fabric or coating was evaluated against. Heat resistance does not prove laser-radiation resistance, and flame retardance does not prove molten-metal resistance.
Specify the following before approval:
- Coating construction, abrasion rating, chemical-resistance data, and continuous-motion limit
- Cutting material, assist gas, operating temperature, and exposure to coolant or oil
- Pune site conditions, including abrasive dust, humidity, cleaning chemicals, and maintenance practices
For laser machine covers in pune, these conditions can shorten service life even when dimensions are correct. A bellows is a contamination barrier, not a substitute for the enclosure, interlocks, beam containment, or fume extraction.
ISO 11553-1 covers safety requirements for laser-processing machines, while IEC 60825-1 covers laser-product classification and safety; neither certifies an individual replacement cover.
Will the replacement install and move without causing damage?
A replacement that looks right can still damage the axis if its mounting geometry or fold movement is wrong. Treat TRUMPF laser bellows installation as a mechanical alignment job, not a fabric swap.
1. Isolate the machine according to its maintenance procedure, then remove the old cover. Inspect the mounting faces, fixed and moving end frames, bolts, and nearby guideway for burrs, distortion, debris, or impact damage.
2. Match the original fixed-end and moving-end arrangement. Align the mounting plates without forcing the bellows sideways, then tighten fasteners evenly. Do not let movement loads transfer into a thin guard or an axis component that was not designed to carry them.
3. Move the axis by hand or under controlled jog operation through its full stroke while watching every fold. Confirm that compressed sections do not buckle into the guideway, cable carrier, hose, sensor, nozzle, or adjacent guard.
4. Check both travel limits. The laser cutting bellow covers must not restrict movement or pull on their mounts when fully extended or compressed.
Excessive friction, incorrect fold spacing, or heat-stiffened material can increase axis load, create stick-slip, and affect positioning. Stop if the cover rubs, bunches, or moves unevenly.
Record the installation date, machine hours, protected axis, measurements used, and photographs of the installed cover. This record helps separate a dimensional fault from damage caused later by a crash or spatter event.
How should you decide, inspect, and replace the cover?
Approve the purchase only after the supplier confirms the exact model, protected axis, dimensions, attachment arrangement, material evidence, and inspection expectations in writing.
For buyers seeking trumpf laser bellow covers for laser cutting in Pune, local supply reduces response time but cannot fix a wrong drawing, missing serial number, wrong laser wavelength, or unverified spark-resistance requirement.
1. Send the complete measurement sheet, not only the machine brand. Include the machine serial number, travel, extension length, folded height, flange-hole pattern, frame dimensions, bolt spacing, end-plate shape, mounting orientation, and clearances around guideways, hoses, cable carriers, sensors, and moving tooling.
2. Ask whether the part is a direct replacement for a named original part or a custom-made cover based on new measurements. Require written confirmation of the fixed and moving end frames, material construction, temperature range, wavelength evaluation, spark or molten-particle resistance, and the inspection interval.
Similar-looking covers can have different compressed lengths and hole patterns.
3. Treat laser machine covers in pune as site-specific equipment. State the cutting material, assist gases, abrasive dust, humidity, coolant or oil exposure, cleaning chemicals, and motion frequency. A specialist such as GURUKRUPA BELLOWS PVT LTD becomes useful when you provide those operating conditions with the measurement sheet.
Inspect at the machine maker’s stated frequency and immediately after a crash, heavy spatter, or rubbing. Look for pinholes, burned or embrittled coating, delamination, torn folds, loose stitching or welds, damaged end frames, deformed folds, and abrasive debris between folds. Check beneath the cover and around moving parts.
Replace it when damage, stiffness, misalignment, or unsafe interference appears; record the cause rather than imposing an unsupported fixed interval.
Related products

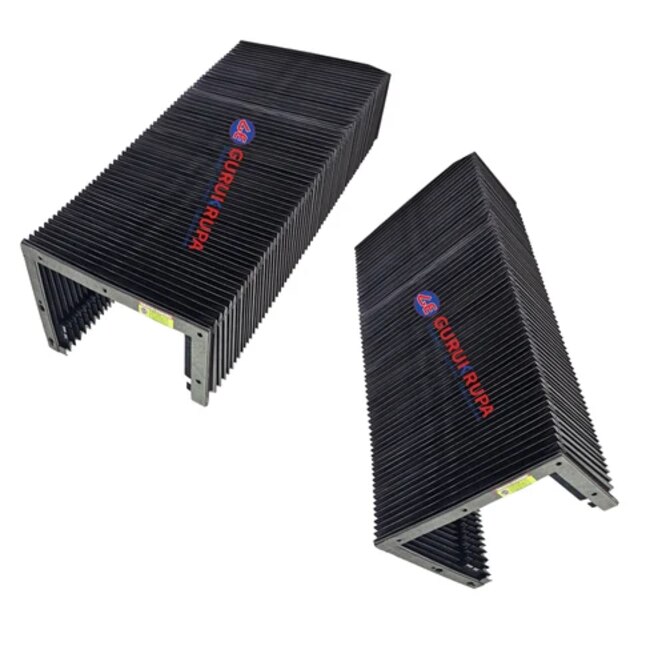

 | Trumpf Laser Bellows Product Details: Minimum Order Quantity 1 Number Brand GE Color Black Size any We offer bellows made specifically for your Trumpf® laser machine. View product → |
 | Laser Cutting Machine Bellows ₹1000 We offer Laser Cutting Machine Bellows made specifically for your laser machine. View product → |
Frequently asked questions
Is a Trumpf label enough to confirm fit?
No. Ask for the exact machine model, serial number, laser type, protected axis and supplier drawing before treating Trumpf laser bellows as compatible.
What must you measure before ordering Trumpf laser bellow covers?
Record the compressed and extended lengths, folded height, width, fold pitch, mounting-hole pattern, travel direction and available clearance.
Can the material withstand a laser-cutting environment?
Check exposure to heat, sparks, molten metal, fumes, coolant, oil and abrasive dust, then match the fabric, coating, seams and guides to those hazards.
How should you inspect and replace a laser bellow cover?
Confirm the replacement matches the drawing, install it without twisting or stretching, move the axis by hand or at low speed, and inspect for rubbing, snagging and restricted travel.
