Machine-tool makers rarely buy a bellow cover by selecting a standard size from a catalogue. They send the supplier a machine drawing, motion profile and contamination conditions, then compare a controlled quotation, trial fit and inspection record. By the end, you will know where to search in Pune, what measurements to submit and how to decide whether fabric, apron or steel protection fits the axis.
Key takeaways
- Search Pimpri-Chinchwad, Bhosari, Chakan, Talegaon and Ranjangaon suppliers.
- Send travel, folded, extended and mounting dimensions with every RFQ.
- Match fabric, coating and construction to chips, coolant, heat and motion.
- Approve fit and run acceptance tests before comparing quotations.
Start with specialist fabricators in Pune’s machine-building belt
Search the Pimpri-Chinchwad and Bhosari industrial belt first, then extend the search to Chakan, Talegaon and Ranjangaon. These areas concentrate machine builders, precision fabricators and protection-component suppliers, so local access makes drawing reviews, site measurements and fit corrections faster than a catalogue-only purchase.
For bellow covers for machine tool manufacturers in Pune, use a direct RFQ to a specialist fabricator rather than ordering from a generic industrial catalogue. A cover must match the guideway, stroke, folded height, mounting orientation, chip load, coolant exposure and available clearance; an off-the-shelf cover often needs costly modification.
Screen each machine tool bellow covers supplier with specific engineering questions:
- Can you develop the cover from a machine drawing and confirm extended length, compressed length, fold height and fold count?
- How do you control fold-pitch repeatability so unequal folds do not rub, compress unevenly or crack?
- Can you provide a drawing or inspection template covering inside and outside dimensions, flange material, hole pattern and allowable travel?
- Will you support a local fit-up and correction cycle before production approval?
- Will you quote prototype development separately from repeat production?
Treat the first cover as an engineering trial, not a replacement-price benchmark. Pattern development, fixtures, drawing review and one fit-check iteration can make a technically capable Pune fabricator appear more expensive than a supplier quoting only a nominal cover.
Send a controlled dimension sheet with the RFQ
A quotation for custom bellow covers in Pune is only comparable when it references a controlled drawing or inspection template. “Made to size” is not enough: the supplier needs the geometry, motion and fixing details that determine whether the cover clears the machine throughout its stroke.
- State the application: horizontal CNC guideway, vertical axis, ballscrew, spindle, hydraulic cylinder or another moving component.
- Give extended length, compressed length, allowable travel, outside dimensions, inside dimensions, fold height and number of folds.
- Show the guideway width, minimum clearance, external obstructions, unsupported span and minimum fold radius.
- Add the mounting-hole pattern, flange dimensions, flange material and moving-end attachment points. Include a marked drawing with datum edges and tolerances.
- Specify horizontal or vertical orientation, travel speed, acceleration, cycle frequency and whether compression occurs from one side or both sides.
- Identify the exposure: dry chips, abrasive swarf, coolant, oil, heat, sparks or washdown. Request the proposed fabric, coating, seam method and temperature range.
Ask the supplier to confirm fold pitch and repeatability, not only the overall dimensions. Unequal folds create local rubbing and uneven compression, then crack at the stressed seam even when the cover fits at full extension. Attach photographs and a clearance sketch if the machine drawing does not show nearby fixtures.
Require the quotation to list every assumption and identify any dimension that needs site verification.
Match the cover construction to chips, coolant and motion
A sewn fabric bellows suits clean-to-moderate chip loads and frequent movement; heavy hot swarf points to an apron or telescopic steel cover. Choose from the contamination, coolant, temperature and motion profile—not from guideway size alone.
| Option | Chip and coolant behaviour | Flexibility and space |
|---|---|---|
| Sewn fabric | Flexible and repairable, but seams and exposed stitching are vulnerable to abrasive chips, oil and coolant ingress | Best for complex paths, tight folds and high-cycle movement |
| Heat-sealed fabric | Removes stitched leak paths and improves resistance to coolant penetration; heat can still damage the coating | Suits compact moving axes with repeated extension and compression |
| Laminated fabric | A selected facing can improve abrasion, heat or chemical resistance; poor material matching causes delamination | Good for demanding motion where fabric flexibility is still necessary |
| Apron cover | Overlapping slats shed chips and resist cutting better than fabric, but gaps can admit fine debris | Needs guided clearance and suits horizontal or moderately inclined ways |
| Telescopic steel | Strongest defence against hot chips, grinding debris and impact; joints need protection from coolant and fine dust | Requires installation space, rigid alignment and allowance for box movement |
For industrial machine bellow covers, state whether the axis is horizontal or vertical, then provide travel speed, acceleration, cycle frequency, unsupported span and minimum fold radius. A cover that clears the guideway at rest can rub, buckle or collapse during rapid reversal.
Use fabric for articulated, space-restricted movement; use steel where chip temperature and impact dominate. An apron or hybrid design bridges those conditions when a full telescopic enclosure will not fit.
Specify the details that prevent early fold and seam failure
Early fold and seam failure starts with an uncontrolled motion envelope, not simply a wrong overall length. For industrial machine bellow covers, specify the guideway geometry, extended and compressed lengths, fold height, fold count, minimum fold radius, and clearance at every obstruction.
Send these values with the drawing:
- Travel speed, acceleration, cycle frequency and allowable travel
- Horizontal or vertical orientation, unsupported span, and whether compression occurs from one side or both
- Guideway width, flange dimensions, mounting-hole pattern and moving-end attachment points
- Coolant type, chip size, temperature range and exposure to oil, alkaline wash or welding heat
- Required material, coating and seam method, with a sample or inspection limit for fold-pitch repeatability
Unequal fold heights create local rubbing and uneven compression. A static fit then fails during rapid cycling.
| Construction | Material and detail to specify | Failure risk controlled |
|---|---|---|
| Sewn bellows | Coated polyester, polyurethane or aramid fabric; thread, stitch pitch and seam overlap | Needle-hole leakage, seam opening and abrasion |
| Heat-sealed bellows | Thermoplastic-coated fabric; weld width and continuous-seal requirement | Coolant penetration and delamination |
| Laminated bellows | Reinforcement layers, adhesive system and edge sealing | Ply separation at tight folds |
| Apron covers | Slat material, overlap, rollers and guide clearance | Chip impact and unsupported-span sag |
| Telescopic steel covers | Steel grade, scraper design, wiper material and slide clearance | Denting, chip ingress and slide seizure |
For custom bellow covers in Pune, attach photographs and the failed cover to the RFQ. Outer-fold abrasion, inner-fold cracking, mounting tears and coolant attack point to different corrections; length and width alone cannot identify them.
Compare Pune quotations through fit approval and acceptance testing
Do not award the lowest quotation until the proposed cover passes a drawing review and machine fit check. Ask every bellow cover manufacturer in Pune to return a marked-up drawing showing extended length, compressed length, fold pitch, number of folds, inside and outside dimensions, flange material, hole pattern and allowable travel.
Compare quotations against evidence, not descriptions:
| Criterion | Acceptable evidence | Warning sign |
|---|---|---|
| Drawing control | Revision-numbered drawing and inspection template | “Made to size” with no tolerances |
| Fold repeatability | Measured fold height and pitch across the cover | Overall length only |
| Prototype support | Local fit-up and one documented correction | Production price only |
| Material control | Material specification, coating and seam method | Colour used as the specification |
| Testing | Written travel, clearance and coolant checks | Visual inspection alone |
For a machine tool bellow covers supplier, require a prototype or first-article cover on the actual guideway. Cycle it through full extension and compression, then inspect for rubbing at the smallest clearance, flange distortion, trapped chips, seam opening and uneven fold compression. Repeat the test with coolant running if the machine uses flood coolant.
Record the acceptance limits: no contact with the guideway or adjacent hardware, no fold inversion, secure fasteners, correct mounting orientation and free travel through the specified stroke. Ask how rejected covers are identified and replaced.
GURUKRUPA BELLOWS PVT LTD is one Pune vendor to include in this controlled comparison, alongside fabricators in Pimpri-Chinchwad, Bhosari, Chakan, Talegaon and Ranjangaon. Keep prototype pricing separate from production pricing because pattern and fixture work belong to the first-article cost.
Related products

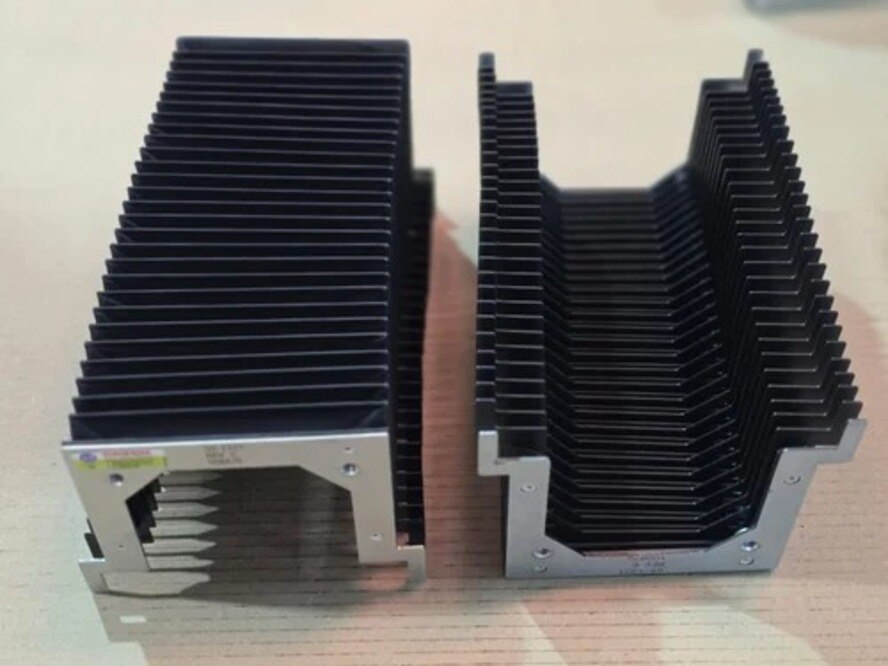

 | Bellow Cover ₹1000 Product Details: Brand GE Color Black-Blue - Gray -White Size ANY ( C shape, Square, Round, Rectangular) Ours is a trustworthy name in the business... View product → |
 | Round Bellow Covers ₹1000 To match with our reputation in the market, we are here to present an unparalleled assortment of Round Bellow Covers. View product → |
Frequently asked questions
Where should machine tool makers search for bellow cover suppliers in Pune?
Start in Pimpri-Chinchwad and Bhosari, then extend the search to Chakan, Talegaon and Ranjangaon for specialist fabricators and protection-component suppliers.
What dimensions should you include when requesting custom bellow covers in Pune?
Send the travel, folded length, extended length, cover width and height, mounting details, clearance limits, guideway geometry and operating speed.
How do you choose a bellow cover construction for chips and coolant?
Specify construction after identifying chip size, coolant type, heat exposure, fire risk, motion speed, stroke frequency and required flexibility.
How can you compare quotations from machine tool bellow covers suppliers?
Compare material and construction against the same dimension sheet, then require drawing approval, a fit check and acceptance testing before placing the order.
