A bellow cover earns its cost only when it prevents contamination-related cleaning, wear, rejected parts or downtime without creating a new restriction in axis travel. You will be able to estimate that trade-off, identify the hazards your machine produces, specify the cover correctly and decide when a rigid cover or scraper system is the better investment.
Key takeaways
- Compare cover cost with avoided downtime, cleaning, repairs and guideway replacement.
- Specify travel, compression, temperature, chips, coolant and mounting dimensions before ordering.
- Use guided expansion, correct mounting and clearance to prevent bellows failure at speed.
- Reject covers that lack material, test, dimensional and service-life details.
What does a bellow cover protect, and what can still damage the machine?
A protective bellow is a contamination barrier for guideways, ballscrews, linear rails, cylinders, cables and hoses. It blocks chips, abrasive swarf and cutting fluid before they reach moving surfaces, reducing cleaning and wear; it does not improve accuracy or repair worn guideway seals.
| Arrangement | Protection and limitation |
|---|---|
| Three-sided | Covers the exposed face while leaving service access; use where side entry is limited and drainage is easy. |
| Fully enclosed | Better containment around rails, screws or cylinders; confirm lubrication access, compressed clearance and fold alignment. |
| Drainage-friendly | Orient folds and provide a path so coolant and swarf do not pool or get dragged through the stroke. |
| Cable carrier | Controls cable and hose bend radius, separation and travel; a bellows alone is not cable management. |
Do not infer chemical or heat resistance from “oil-resistant” or “corrosion-resistant.” Request data for the actual water-miscible coolant concentration, neat oil, additives, tramp oil, solvents, cleaning chemicals and chip temperature, including effects on coating, thread, adhesive, stitching and end frames.
Hot swarf, welding sparks, flame, continuous heat, high-pressure washdown and compressed-air blow-off can burn, puncture, balloon or detach a fabric cover.
A bellow is not a pressure-rated duct, machine guard or interlocked safety enclosure. Confirm pressure limits, restraint and fold stability before exposing it to pressure. Buyers comparing protective bellows in Pune should request identified material construction and drawings, not rely on a generic label or price.
How do you calculate whether the cover pays for itself?
Calculate payback by comparing the cover’s fully installed cost with the annual contamination cost it prevents. Include:
- Purchase price, custom fabrication, mounting hardware and installation labour
- Guideway cleaning, maintenance hours, coolant and swarf removal
- Replacement seals, ballscrew or bearing wear, rejected parts and emergency repairs
- Lost production time during cleaning, breakdowns and part replacement
- Inspections, planned maintenance and the cover’s eventual replacement
Annual benefit equals expected contamination-related cost without the cover minus expected cost with the cover. Divide the installed cost by that annual benefit to estimate payback time. Use actual maintenance records where possible, and price downtime at the contribution margin lost while the machine is unavailable.
The economic case is strongest when abrasive swarf reaches exposed guideways or screws, cleaning interrupts production, or one failure creates significant downtime. It is weak when an axis is enclosed, clean and protected by effective existing seals; when the bellows needs frequent replacement; or when rubbing restricts travel and creates new damage.
| Protection option | Strength | Economic warning |
|---|---|---|
| Fabric bellows | Light and adaptable around irregular geometry | Vulnerable to sharp swarf, heat and abrasion |
| Telescopic steel cover | Handles heavier, hotter and sharper swarf | Adds mass, inertia, noise and mechanical complexity |
| Scraper system | Removes contamination at a contact point | Does not replace full travel protection |
For protective bellow covers for cnc machine users in pune, compare this calculation with a dimensional drawing and replacement plan, not the cover price alone.
What measurements and material details must you specify before buying?
A catalogue length is not enough: a cover with excessive compressed length can stop the axis short or collide with nearby structures. Give the supplier the machine make and model, photographs of the failure area, and this dimensional checklist:
- Axis travel; maximum extended length; minimum compressed length; fold height; number of folds; lateral movement; travel speed; acceleration; available clearance; bend radius; mounting-hole pattern; and end-frame dimensions.
- Rail width and height, carriage arrangement, lubrication access, and the space around the ballscrew or cylinder.
- Coolant type and concentration, chip form and temperature, cleaning chemicals, cleaning method, and any washdown pressure.
For Hiwin EG or HG installations, state the rail size and carriage layout. The series name alone cannot define the fit. Choose three-sided access or fully enclosed coverage without covering lubrication points.
| Material or construction | Suitable starting point | Check before ordering |
|---|---|---|
| PVC- or polyurethane-coated fabric | General chips and coolant | Coating, thread, adhesive and coolant concentration |
| Neoprene | Relevant oil exposure and flexible movement | Neat oil, additives and cleaning chemicals |
| Silicone or heat-resistant fabric | Elevated temperatures | Continuous temperature and hot-chip limits |
| Fiberglass or reinforced construction | Heat combined with abrasion | Seam, lamella and end-frame durability |
For buyers comparing bellow covers for cnc machines in pune, request a dimensional drawing showing travel limits, frames, fold height and guide components. Confirm seam construction, end-frame material and chemical compatibility in writing.
How should the cover be installed so it survives rapid axis travel?
Yes—a correctly specified bellows can fail if its mounting forces crooked folds, unsupported spans or contact with moving parts. Install it so the end plates remain square to the axis, fasteners clamp without distorting the frames, and guide strips or supports keep the cover centred through the full stroke.
- Confirm mounting orientation, compressed length and available clearance before tightening the fasteners.
- Check full extension and full compression: the cover must not rub the machine, screw, rail, way or adjacent cover.
- Set the fold direction so folds open consistently; prevent fold inversion, bunching and excessive lateral drift.
- Support long spans so their weight does not increase seam tension or create contact marks.
- Keep folds open to drainage. Horizontal installations and downward-facing folds need a drain path and a method for stopping chips from being dragged through the stroke.
- Move the axis slowly by hand, then test progressively at operating speed and acceleration. Watch for bunching, fold inversion, lateral drift, seam tension and fresh contact marks.
- Confirm the bellows’ pressure limit before exposing it to high-pressure coolant or compressed air, and restrain the cover and end frames against the resulting force.
Do not use the bellows to separate cables, control chain travel or maintain cable bend radius unless it was engineered as part of that cable-management system. A cable carrier remains responsible for cable routing; otherwise cable fatigue can continue behind a well-protected way.
When is a protective bellow worth choosing, and how should you compare suppliers?
A bellow is worth choosing when contamination reaches the guideway or screw, the axis has enough compressed-length clearance, the material matches the coolant and chip hazard, and avoided maintenance or downtime exceeds the installed cost.
Choose another protection system when the process produces glowing or sharp chips, grinding sparks, severe abrasion, frequent hot-chip impact, restricted access, insufficient travel envelope or repeated high-pressure washdown. Compare these options instead:
| Option | Strength | When it applies |
|---|---|---|
| Fabric bellows | Flexible, light protection | General chips, dust and coolant within confirmed material limits |
| Telescopic steel or apron cover | Rigid resistance to hot, sharp swarf | Heavy dry machining, grinding and glowing chips |
| Chip deflectors, external slats or scrapers | Diverts or removes contamination | Exposed impact zones or limited bellows clearance |
Screen each supplier against the machine, not a catalogue label:
- Request a drawing showing extended and compressed lengths, fold height, travel limits, mounting frames, guide strips and support components.
- Supply axis travel, lateral movement, speed, acceleration, clearance, coolant type and concentration, chip temperature and cleaning method.
- Ask for the identified coating, thread, adhesive, seams and end-frame construction, plus compatibility confirmation.
- Confirm installation guidance and replacement capability from measured geometry.
Buyers comparing protective bellow covers for cnc machine users in pune, bellow covers for cnc machines in pune or protective bellows in pune should compare these documents before price. GURUKRUPA BELLOWS PVT LTD is one supplier to assess for material identification, installation support and replacement accuracy.
An industrial bellow cover supplier in pune can reduce freight-related downtime through local availability, but proximity cannot fix an incorrect travel calculation.
Related products

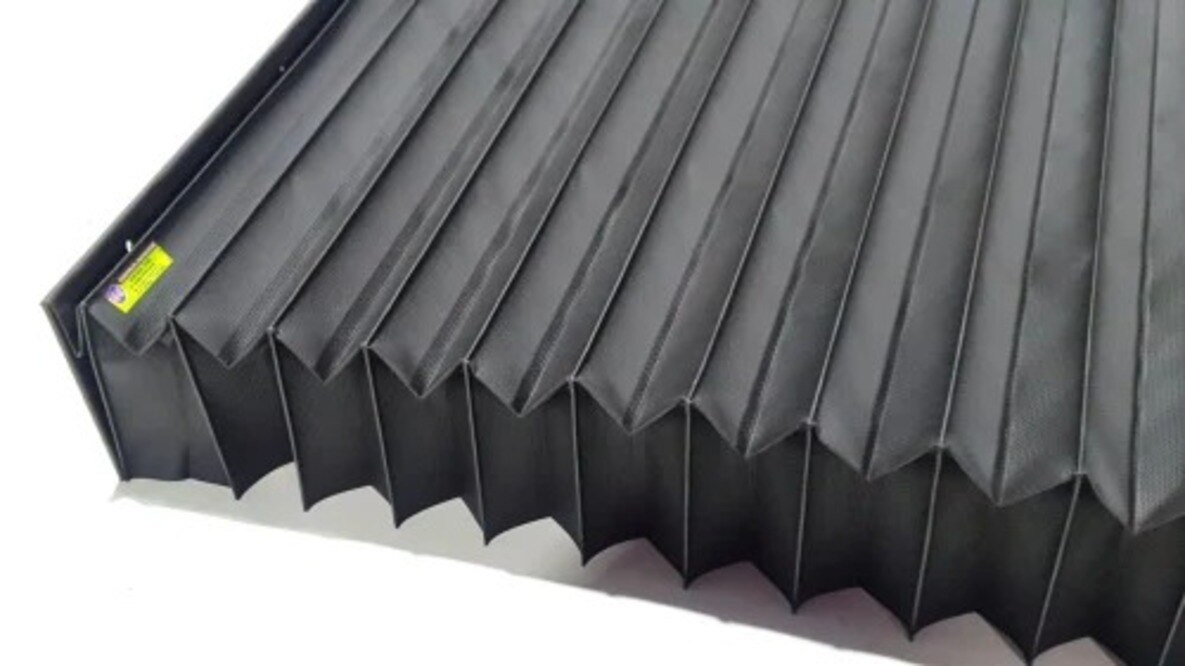

 | CNC Bellow Cover Product Details: Brand GURUKRUPA Color BLACK Size ANY We are considered a well-known name in the business that manufactures and supplies CNC Bellow... View product → |
 | Bellow Cover ₹1000 We are offering an excellent quality of Protective Bellows for all type Guideways. This design covers three sides of the rail. View product → |
Frequently asked questions
What does a protective bellow cover protect on a CNC machine?
It shields guideways, ballscrews, linear rails, cylinders, cables and hoses from chips, abrasive swarf and cutting fluid. It will not restore worn seals or improve machine accuracy.
How do you calculate whether a CNC bellow cover pays for itself?
Compare the installed cover cost with avoided cleaning time, downtime, replacement parts, repair labour and lost production. Use the expected service interval and assign a cost to each hour of unavailable machine time.
What measurements must you provide before buying a protective bellow?
Provide the protected length, travel, open and compressed lengths, width, height, mounting-hole pattern, folded height, clearance and attachment method. Add chip size, coolant type, temperature, speed and acceleration.
How should a bellow cover be installed for rapid axis travel?
Align the cover with the axis, prevent twisting, preserve the specified compressed clearance and support the mounting frames. Check that expansion does not rub adjacent parts throughout the full travel.
When is a protective bellow worth choosing for a CNC machine?
Choose one when contamination reaches moving components, cleaning consumes production time, or guideway and ballscrew repairs cost more than the cover. Compare suppliers on fit, materials, tested travel performance, serviceability and documentation.
