A resale cover must match the machine’s actual travel envelope, motion profile, contamination, chemistry and mounting geometry—not just its advertised width or the machine model. By the end, you will have a measurement sheet, supplier-comparison method, inspection plan and inventory framework for choosing covers that can be resold with fewer fitment failures.
Key takeaways
- Match the cover to axis motion, contamination, heat and attachment points.
- Measure visible folds, travel and mounting dimensions without removing the installed cover.
- Compare landed cost, documentation, lead time and repeatability—not unit price alone.
- Approve a first article only after fit, movement, sealing and material checks.
Match the cover to the machine motion and hazard
Choose by the machine’s actual axis motion and contamination hazard, not by machine name or nominal size. Deciding how to choose cnc machine bellow covers for resale starts by identifying whether the item is a way cover, shaft bellows, or enclosure curtain; their attachment methods and sealing assumptions differ.
- Map the travel envelope: direction, extended and compressed length, outside width, height, folded height, speed, acceleration, cycle frequency, and clearance at both ends. Two covers listed for the same axis may not interchange.
- Match the hazard: abrasive chips and impact favour metal telescopic covers; coolant, dust, flexible routing, and frequent movement often favour fabric bellows. Record operating temperature, coolant type, chip size, and mounting orientation.
- Ask every supplier to quote number of folds, fold pitch, compressed and extended lengths, cover section, fabric construction, reinforcement, end-frame material, mounting-hole pattern, and acceptance tolerances. Without fold pitch and compressed length, prices are not comparable.
- Reject a generic “CNC bellows” quote that omits the machine’s travel limits or treats a cover as guarding. Confirm integration against the machine builder’s risk assessment, interlocks, and safe operating procedures.
| Cover type | Motion and hazard match | Main trade-off |
|---|---|---|
| Fabric bellows | Flexible guideway protection against coolant, dust, and moderate chips | Light and quiet, but vulnerable to sharp or hot impact |
| Metal telescopic cover | High-speed axes exposed to heavy, hot, abrasive chips | Stronger protection, but heavier, noisier, and slower to install |
| Shaft bellows or curtain | Rods, spindles, or openings rather than guideways | Wrong choice for broad sliding-axis protection |
Measure an installed cover without removing it
Use the machine’s fixed casting as your datum and record every measurement in millimetres. Measure the installed cover in both end positions; do not rely on its nominal travel or remove it before documenting how it is mounted.
| State | Measure | Drawing use |
|---|---|---|
| Collapsed | Overall length, folded height, width, fold pitch and remaining clearance | Confirms the storage envelope and allowable compression |
| Extended | Overall length, height, width and visible travel | Confirms guideway coverage and required stroke |
| Both ends | Clearance to castings, guards, tools, hoses and adjacent axes | Prevents collision at either limit |
| Mounting | Flange length and thickness, hole spacing, hole diameter, slot direction and bolt-head clearance | Defines the end-frame and fixing pattern |
Record the axis orientation, travel direction, guideway width, guideway height and the cover’s position relative to the rail or screw. Measure the space available beyond each end of the guideway, including the space needed for the folded cover.
- Photograph both end frames, each mounting face and the full travel path.
- Count folds and measure one fold from crest to crest; note whether the folds are uniform.
- Record wiper, scraper, brush, seal and reinforcement locations.
- Identify fabric or metal construction, coating, plate thickness, damaged areas and evidence of rubbing, coolant swelling or heat marks.
- Note the machine model, axis name, cover serial or drawing number and all observed travel limits.
For a production drawing, add datums, hole tolerances, mounting-face squareness, compressed-length limit and extended-length limit. Mark each dimension as measured, estimated or requiring supplier confirmation.
Specify materials, motion limits and construction details
Convert the machine’s operating conditions into drawing fields, not marketing terms. Record the axis travel, direction, speed, acceleration, cycle frequency, available clearance, coolant type, cleaning chemical, chip size and heat at the cover. A cover for a horizontal axis faces different drainage and chip-loading conditions from one on a vertical axis.
Give the CNC machine bellow covers supplier these manufacturing and inspection details:
- Fold count, fold pitch, compressed length, extended length, outside width, overall height and folded height
- Guideway orientation, travel direction, allowable compression, clearance at both ends and operating envelope
- Fabric construction: PVC-coated, polyurethane-coated, neoprene or silicone-coated fabric; add aramid reinforcement where tearing or abrasion demands it
- Coolant and washdown chemistry, with a written compatibility statement for the actual mineral-oil, synthetic or alkaline fluid
- Reinforcement strips, internal support, scraper or wiper arrangement, drainage features and resistance needed for hot chips
- End-frame material, frame dimensions, mounting-hole pattern, flange arrangement and fastener access
- Operating temperature, maximum speed, acceleration and cycle rate
- Drawing tolerances for length, section, hole location and squareness, plus the inspection method
Do not accept “standard size” as a specification. The supplier must return a drawing showing the fold pitch, mounting geometry and collapsed length, then confirm those dimensions on the first article.
Check full extension and compression on the machine; binding, excessive sag or a fold that strikes the guideway is a failed design, not an installation adjustment.
Compare wholesale offers by landed cost and repeatability
A low unit price can become the expensive offer after tooling, freight, installation, and one failed replacement are included. Compare CNC bellow covers wholesale quotations against the same specification: fold count and pitch, compressed and extended lengths, section dimensions, mounting pattern, construction, tolerances, lead time, and packaging volume.
| Option | Compare | Cost or risk to record |
|---|---|---|
| Standard cover | Uses an existing pattern and stocked components | Lower tooling cost and faster delivery; verify folded height, flange holes, axis direction, and machine-model fit |
| Made-to-order cover | Built from your drawing, sample, or measured machine | Add pattern or tooling charges, prototype cost, approval time, and the price of replacement panels or end frames |
| Local manufacturer | Measures, installs, and rectifies locally | Value includes site response, replacement wipers or scrapers, and lower downtime |
| Trader or importer | Supplies an outside product | Confirm factory identity, warranty exclusions, repeat-order control, freight, customs, and support after the first shipment |
Do not treat “in stock” as a usable quantity. Record complete, saleable sets by width, compressed height, fold pitch, flange detail, construction, orientation, and original machine model; otherwise dead stock accumulates.
For repeatability, request the drawing revision, inspection report, material construction, acceptance tolerances, and a retained sample or pattern reference. Ask how the supplier will reproduce an obsolete cover six months later.
A CNC telescopic cover supplier in Pune should also state whether it manufactures, integrates, or trades the cover and whether it can rectify an installation around Pune.
GURUKRUPA BELLOWS PVT LTD is worth comparing on that same evidence, not on catalogue labels. Total ownership includes planned spares, cleaning, wiper replacement, installation time, downtime from poor fit, and disposal of non-interchangeable stock.
Related products
 | CNC Telescopic Cover Product Details: Brand GURUKRUPA Being one of the trustworthy names of the industry, we bring forth CNC Telescopic Cover that can be availed at... View product → |
 | CNC Bellow Cover Product Details: Brand GURUKRUPA Color BLACK Size ANY We are considered a well-known name in the business that manufactures and supplies CNC Bellow... View product → |
Qualify the first article before listing it for resale
Do not list the first article because its width and extended length match. Accept it only after a machine-side trial proves fit, motion and supportability.
1. Verify the quotation against the cover: type, original machine model, axis orientation, extended and collapsed lengths, width, height, allowable compression, mounting position, end-frame dimensions, bolt-hole pattern and clearance at both ends. Record fold pitch, fabric or plate construction, scraper or wiper details and attachment hardware.
2. Install it with the production brackets, fasteners and guides. Run the complete axis travel, including acceleration, deceleration, reversal and repeated cycles. Watch for rubbing, trapped folds at full compression, casting collisions and lost clearance at either end.
3. Confirm that construction matches the hazard. Reject a fabric bellows as a steel-cover substitute until chip shape, temperature and impact energy are checked. Reject a generic “CNC bellows” quote if it is actually a shaft bellows or enclosure curtain.
4. Inspect the cover after cycling. Look for torn fabric, distorted folds, plate contact, scraper gaps, coolant paths and abnormal force or noise. Measure compressed height again.
5. Keep the approved drawing, photographs, test record, material details and replacement-part list with the stock code. Before listing, obtain lead times for wipers and scrapers and confirm site-rectification support; an accurate fit without post-delivery support is not resale-ready.
Frequently asked questions
How do you match a CNC bellow cover to the machine?
Identify the protected component, axis motion, travel, compressed and extended lengths, contamination hazard, temperature exposure and mounting method. A way cover, shaft bellows and enclosure curtain require different construction and sealing assumptions.
How can you measure an installed CNC bellow cover without removing it?
Record the cover’s extended and compressed lengths, fold height, width, mounting-face dimensions, travel direction and attachment details. Photograph each end and measure clearances around the guideway, tooling and nearby cables.
What should a resale specification include?
State the material, temperature and chemical exposure, fold geometry, motion limits, compression ratio, end frames, mounting holes, sealing method and required inspection documents.
How should you compare CNC bellow covers wholesale offers?
Calculate landed cost from the unit price, tooling, packaging, freight, duties, taxes, inspection, rejects and replacement handling. Compare lead time, minimum order quantity, dimensional consistency and the supplier’s ability to repeat the approved design.
What checks qualify the first article before resale?
Install the sample on the target machine or a dimensional fixture. Check travel, fold movement, clearances, attachment strength, sealing, abrasion, heat exposure and interference throughout the full operating cycle.
Related products

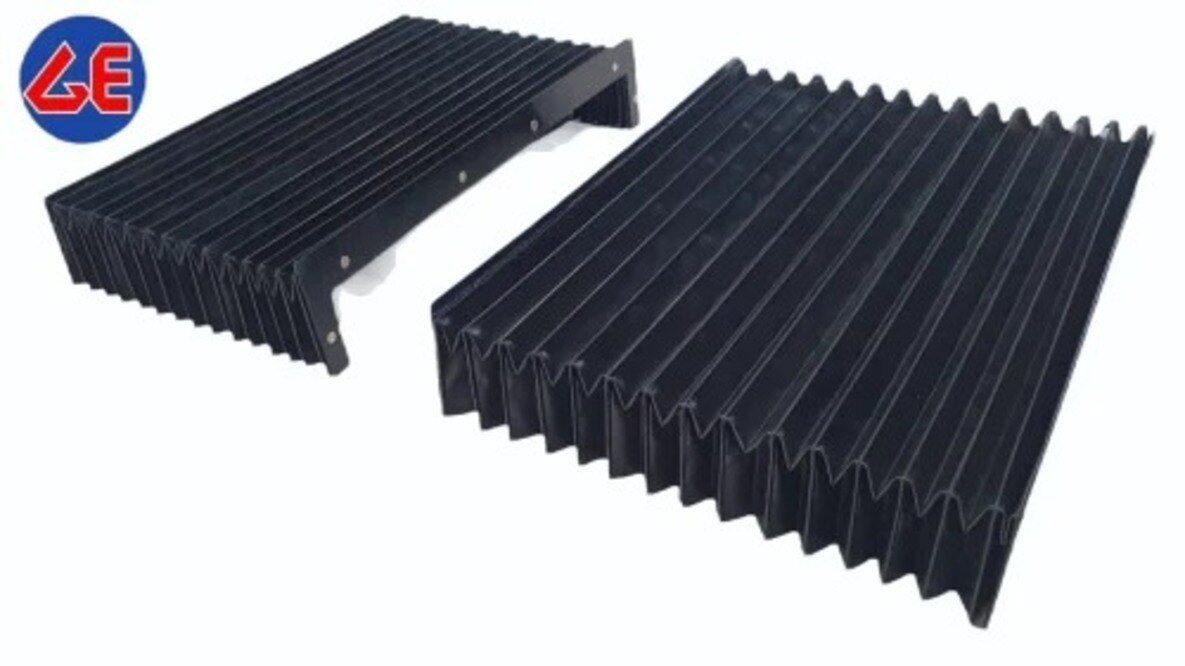

 | Bellow Cover ₹1000 Product Details: Brand GE Color Black-Blue - Gray -White Size ANY ( C shape, Square, Round, Rectangular) Ours is a trustworthy name in the business... View product → |
